Ground Fault Relay Part Number Selection Guide
Note(s)
1. Ground fault relay recommendations based on mating with a shunt-trip breaker only
2. Wire type: CU | THHN
3. Corrected conductor amperage capacity @ +40°C ambient temperature and as required correction factor for more than 3 conductors in raceway,
reference NEC Tables: 310.15(B)(1), 310.15(C)(1) & 310.16
4. Reference How to Calculate Wire Bundle Diameter Application Note
5. Configurations: Live Wire & Neutral plus Ground (2+1). 3-wire Delta plus Ground (3+1). 4-wire Wye plus Ground (4+1).

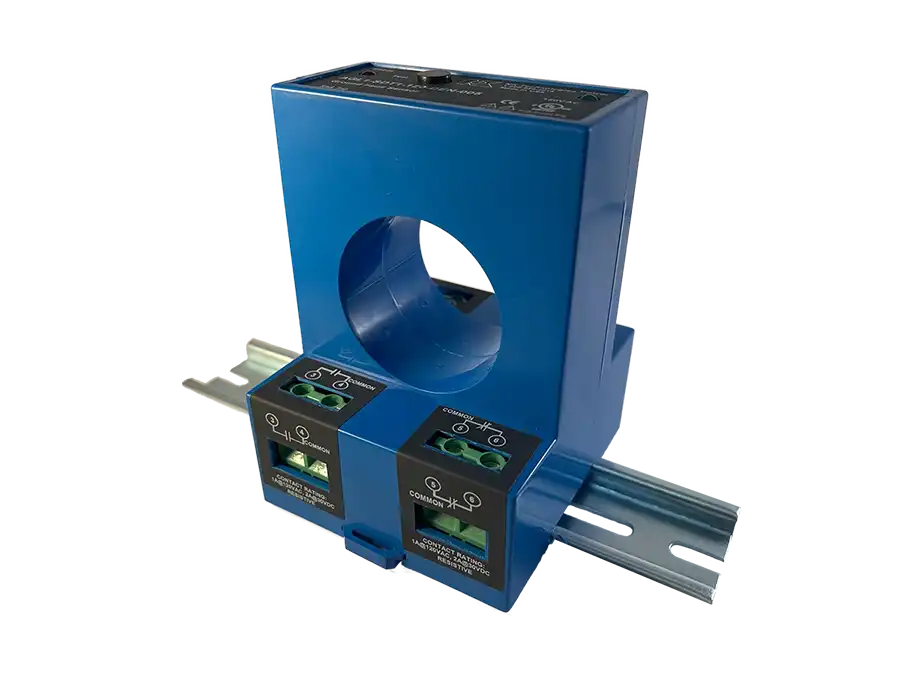

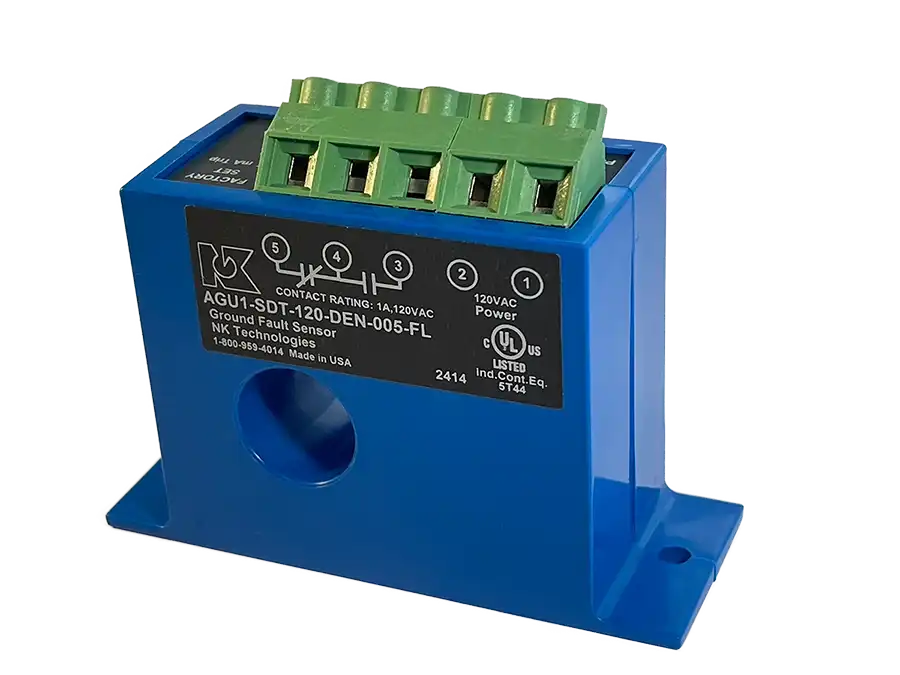

AC Ground Fault Relay Relevant Features and Options
A properly configured NK Technologies AC ground fault relay will trip in the range of 4 mA to 6 mA and trips within an established period-of-time, meeting the intent of the 2020 & 2023 National Electric Code.
Standard features:
• Manual ground fault push-to test.
• Two visual indicators: power status and ground fault trip status.
• Normally Open/Normally Closed mechanical relay outputs.
User selectable output options (available choices vary by model):
• Normally energized or normally de-energized contacts.
Resources & Downloads
Contact Us for Assistance
"*" indicates required fields
Shunt Trip Breaker Options

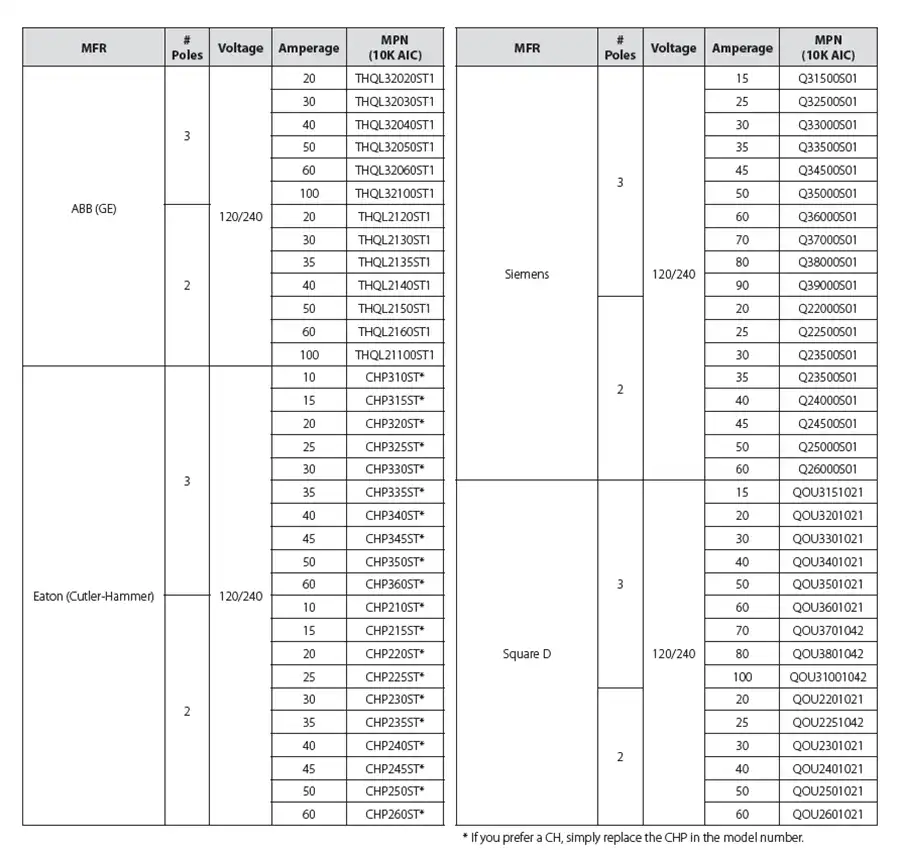

A Shunt Trip Breaker is required along with a NK Technologies AGU or AGL Ground Fault Relay to complete a 5mA Ground Fault Interrupter Solution. NK Technologies does not sell Shunt Trip Breakers. To make it easier for you to complete your solution, see the table below showing the correct part number for many of the leading Shunt Trip Breaker manufacturers.
If you need technical assistance contact us.
