Max. Wire Bundle 0.75 in (19.1 mm) Dia.

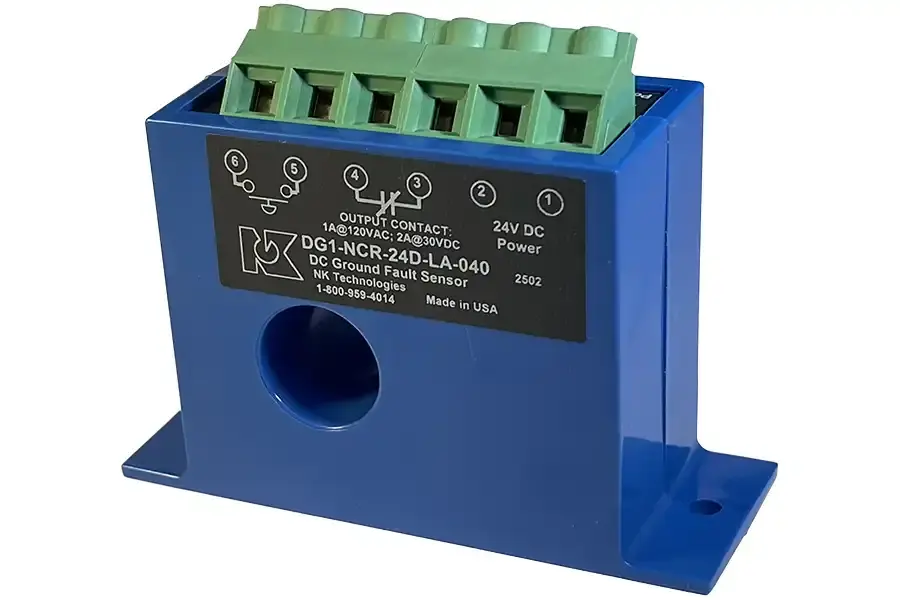

DG Series DC Ground Fault Relay
DG Series Ground Fault Relay keep machinery and their operators safe from accidental shocks. The one-piece, solid-core design allows for installation over wires feeding loads to about fifty amps. The DC Ground Fault Relay output will change state at factory setpoint between 5 and 50 mA of DC current to earth.
ELECTROMECHANICAL RELAY OUTPUT
- Auto reset models have both normally open and normally closed contact.
- Latching models have one normally open and one normally closed contact.
- Compatible with most automation and control systems.
EXTERNALLY POWERED
- A choice of fail safe or standard auto reset operation, or latching contact..
SOLID-CORE CASE
- Sensing window provides ample space for multiple conductors.
DESIGNED FOR UL, CUL AND CE APPROVAL
- Accepted worldwide.
